Designing pool projects outside the proverbial box

Photos courtesy Guncast Pools & Spas
The pool floor is a structural stainless steel space frame incorporating a lifting system to raise and lower the floor as required. Photos courtesy Guncast Pools & Spas

The moving pool floor

What if a pool (indoor or outdoor) had a moving floor, which could have variable pool depths or completely disappear? People could sit back and relax as the pool area is seamlessly replaced with a solid movable floor which can then be used as a dance function venue, play area, dining hall, or gym.

Photos courtesy Guncast Pools & Spas
The pool is designed and built to accommodate the moving floor and remains in a constant state of “ready-to-use” regardless of the position it is in.
Photos courtesy Guncast Pools & Spas

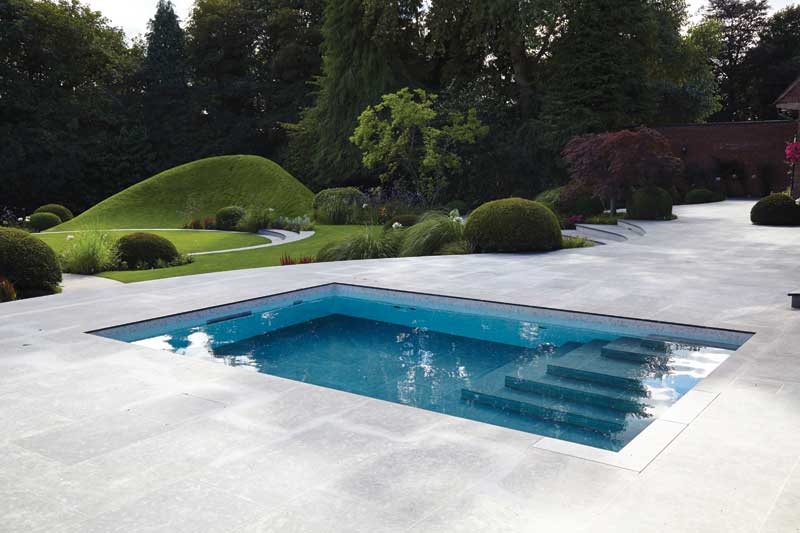

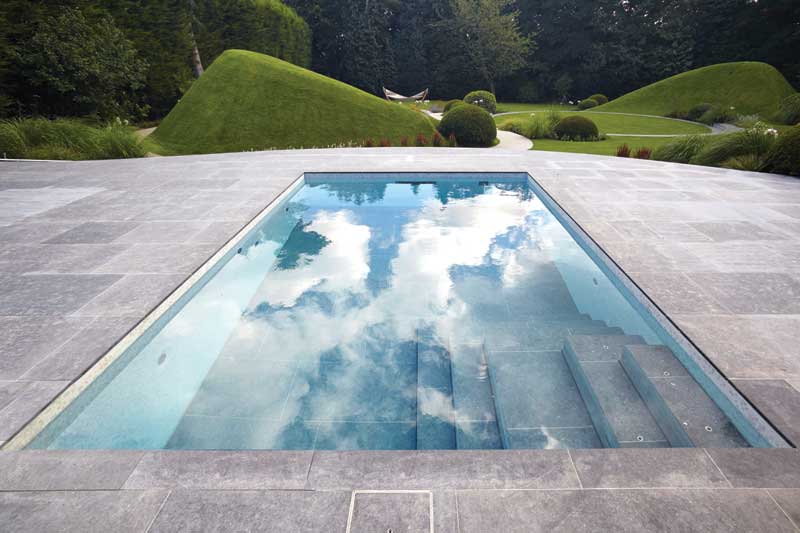

Each step is positioned in the correct location as the floor moves down, while in the fully-up position it carries the same design load as the rest of the floor.

The pool floor operates on a variable-depth pool system and a fixed finished floor in the fully up position. The pool floor is a structural stainless steel space frame incorporating a lifting system to raise and lower the floor as required. This ensures the pool can support its maximum static load at any level.

Photos courtesy Guncast Pools & Spas

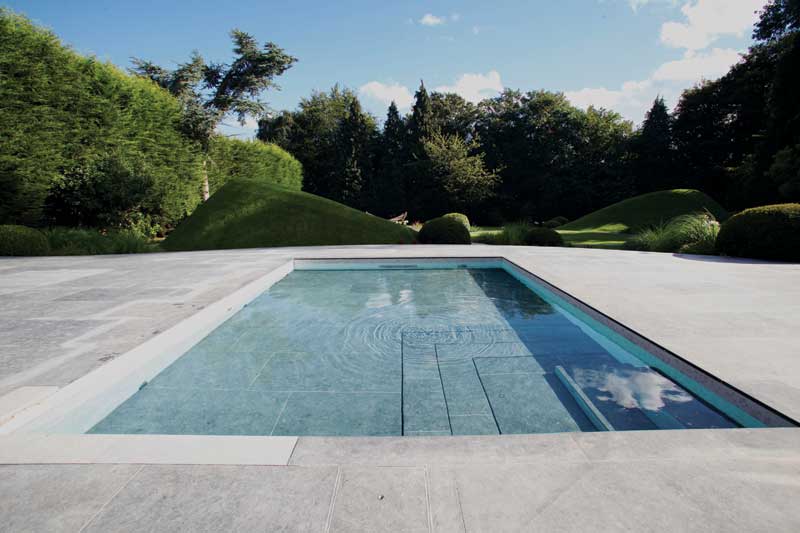

The floor can be stopped at any level for swimming or exercise, allowing a shallow feature pool for children

The pool is designed and built to accommodate the moving floor and remains in a constant state of “ready-to-use” regardless of the position it is in. When the floor is in operation, the pool water percolates above and below the moving floor’s structural deck via the 8 mm (0.315 in.) perimeter slot and the pool water circulation system. The rate of operation is approximately 100 mm (3.9 in.) per minute; however, this is by design, and the floor is driven via an external drive system.

Photos courtesy Guncast Pools & Spas

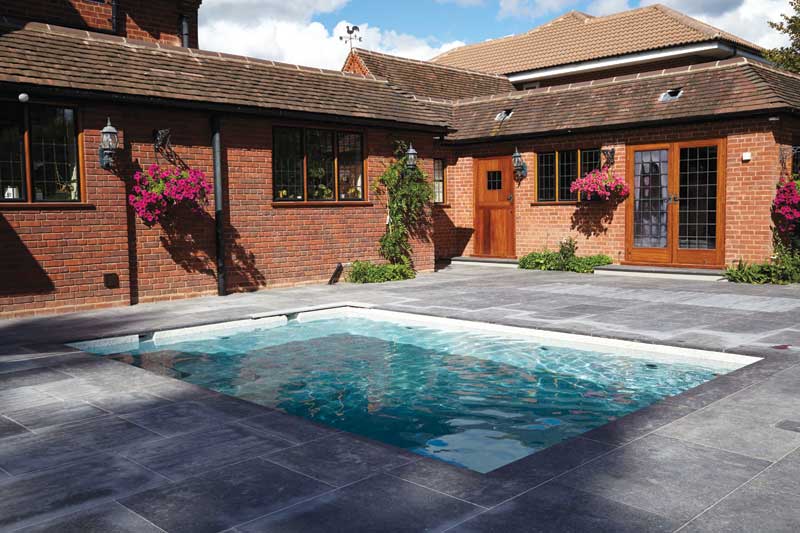

When the floor is in operation, the pool water percolates above and below the moving floor’s structural deck

The pool floor structure is designed and manufactured to include any step detail required. Each step is positioned in the correct location as the floor moves down, while in the fully-up position it carries the same design load as the rest of the floor.

Photos courtesy Guncast Pools & Spas

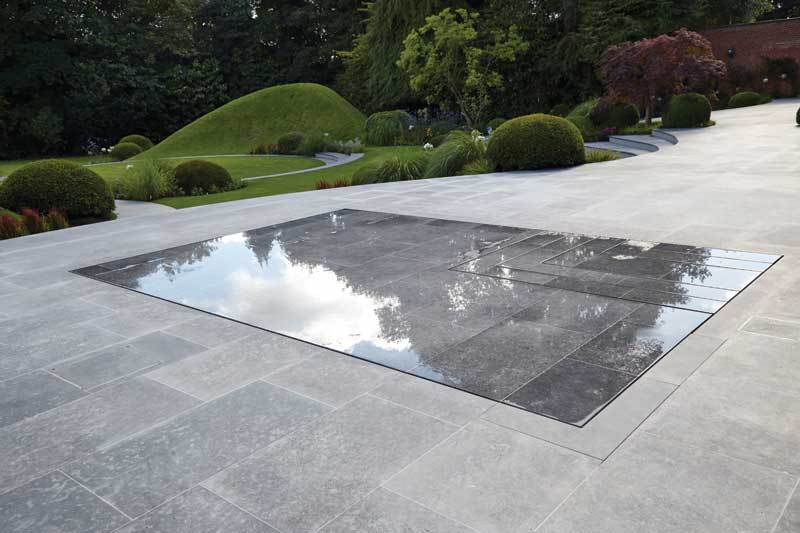

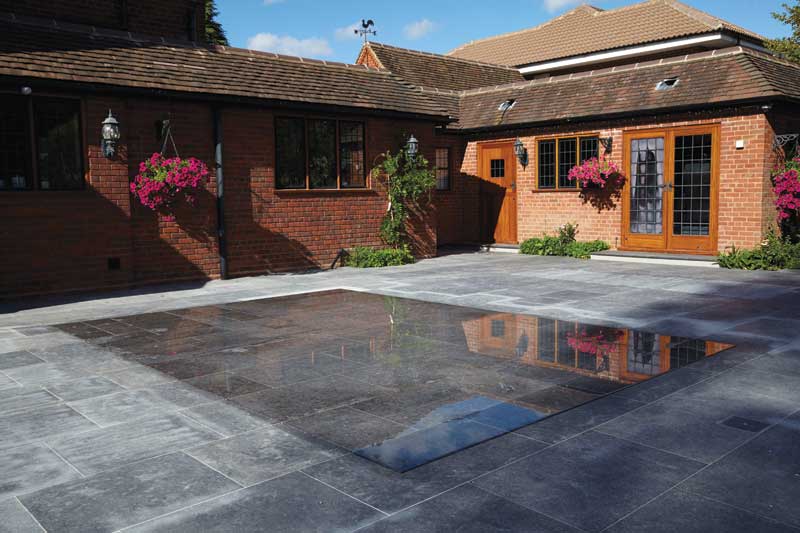

The pool area can be seamlessly replaced with a solid movable floor which can then be used as a dance function venue, play area, dining hall, or gym.

The floor can be stopped at any level for swimming or exercise, allowing a shallow feature pool for children, or down to the maximum operating depth for a diving pool.

No matter how big or unique a project is, healthy water conditions and visual clarity of pool water remain an expectation of every pool owner. Pool water which has the correct pH level is easier on skin, the pool equipment, and most concrete pool finishes.

Innovation is a term which is used more frequently these days and should certainly not be misused. By delving into these different pool types, one can see how today’s pool builders are not only incorporating innovation into their designs, but also superior quality.

Author

Chris Gregory is registered with the Society of Watershape Designers, the International Watershape Institute (IWI), and is president of Eco-Pools Inc. based in the Greater Toronto Area. Gregory’s company focuses on upscale, energy-efficient pools. Since 1988, he has designed and built pools in both Canada and Australia for the residential and commercial markets, as well as the film industry. Gregory’s work has also been featured on HGTV. He can be reached via email at chris@eco-pools.ca.
