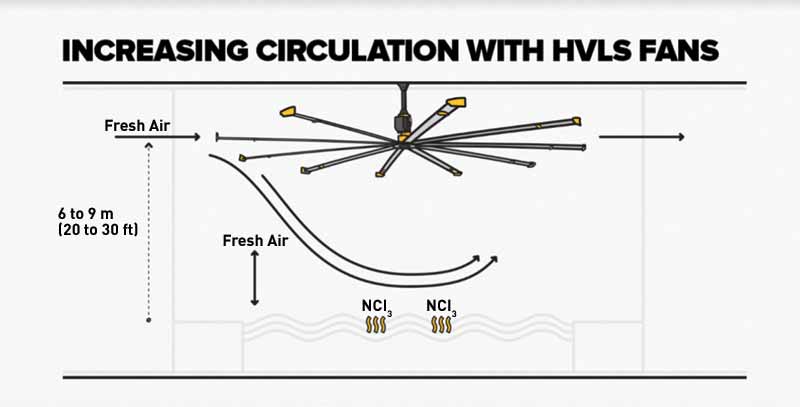

A typical HVLS fan placement is dictated by the size of the facility. A single fan placed over the geometric centre would provide an efficient dispersal of chloramines at the water surface level. However, larger pools and unique designs and layouts, may need more than one fan. With an air movement facility layout tool, designers and maintenance staff can see exactly where the air will go and the impact of the fan’s placement on the space, including expected air speeds at occupant and water surface levels.
Linking HVLS fans to automation systems offers greater control to facility managers to operate ventilation and distribution systems cohesively.
Conclusion for HVLS
Like with any building, a natatorium’s design must keep in mind its occupants and activities, which would help create a quality environment. HVLS fans can definitely aid in effective ventilation, gently circulating and mixing the air to achieve uniformity and proper IAQ throughout the space.
The MAHC offers recommendations on peak seasonal use of facilities and relative humidity measurements when considering energy consumption during non-peak times. As stated in the 2015 ASHRAE Handbook, reductions in room air temperature and/or relative humidity can increase evaporation from pools, creating the need for dehumidification and elevating pool water heating costs. For example, a system designed to provide the minimum ventilation rate without dehumidification is unable to maintain the desired relative humidity conditions in a space; potentially facilitating mould and mildew growth, thus providing a low IAQ.
As an added bonus, HVLS fans can play an important role as part of a system focused on earning points from the Canada Green Building Council’s (CaGBC’s) Leadership in Energy and Environmental Design (LEED), a green building certification system providing third-party verification for environmentally friendly building practices during construction
